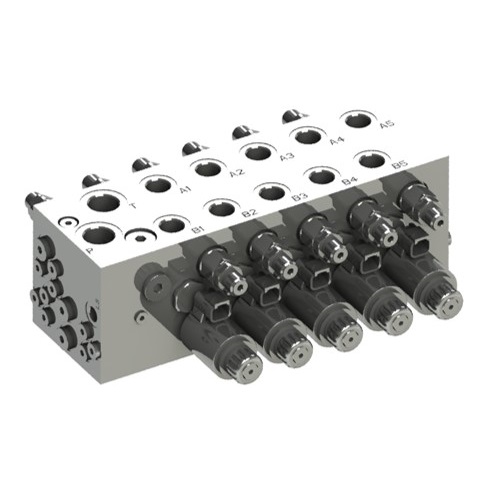

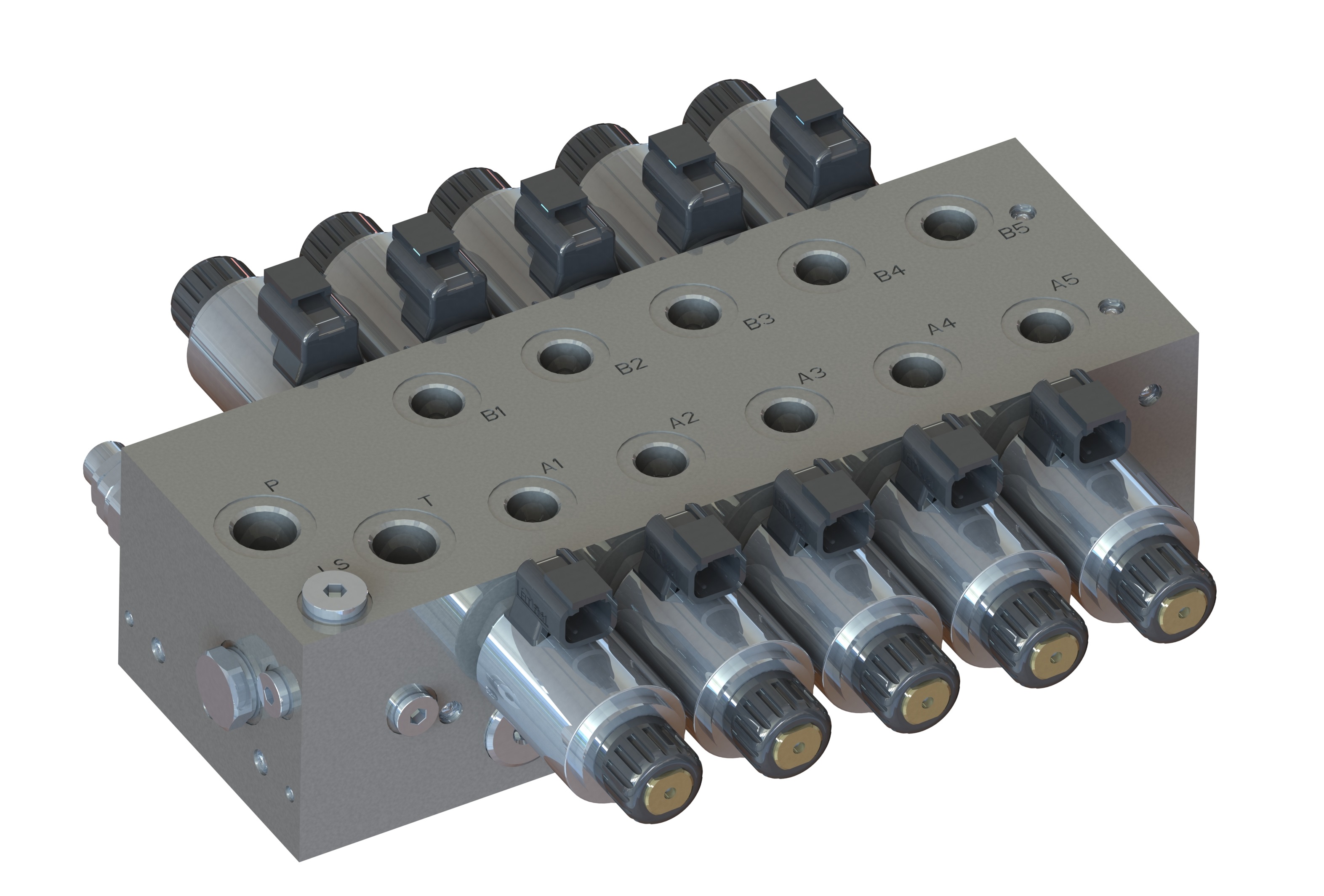

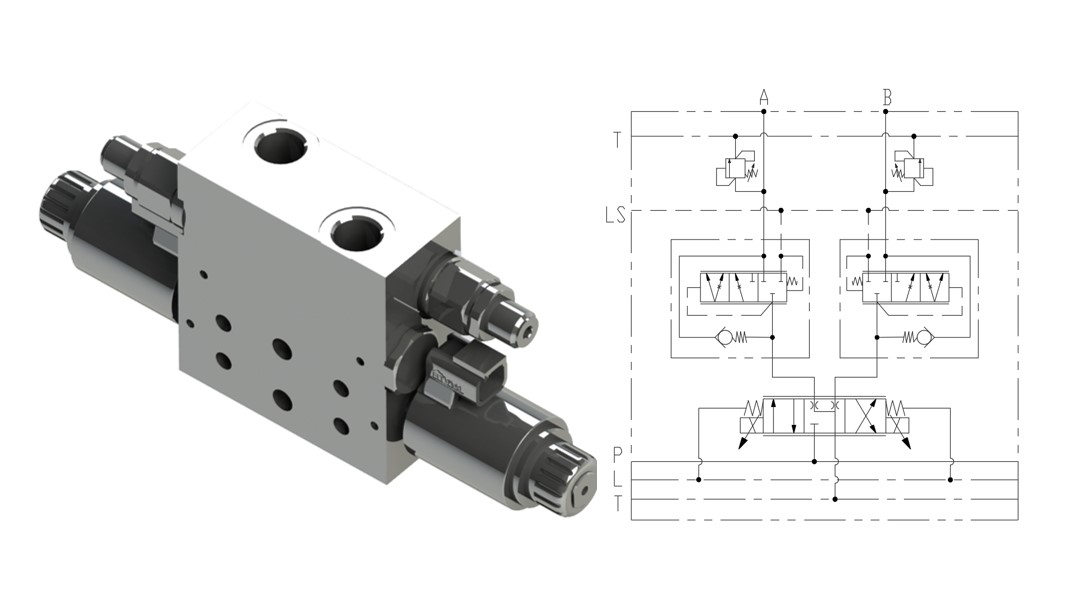

- Products Description
- Main Function
- Parameters
· Monoblock design and leakage free.
· The manifolds is never worn and maintenance free.

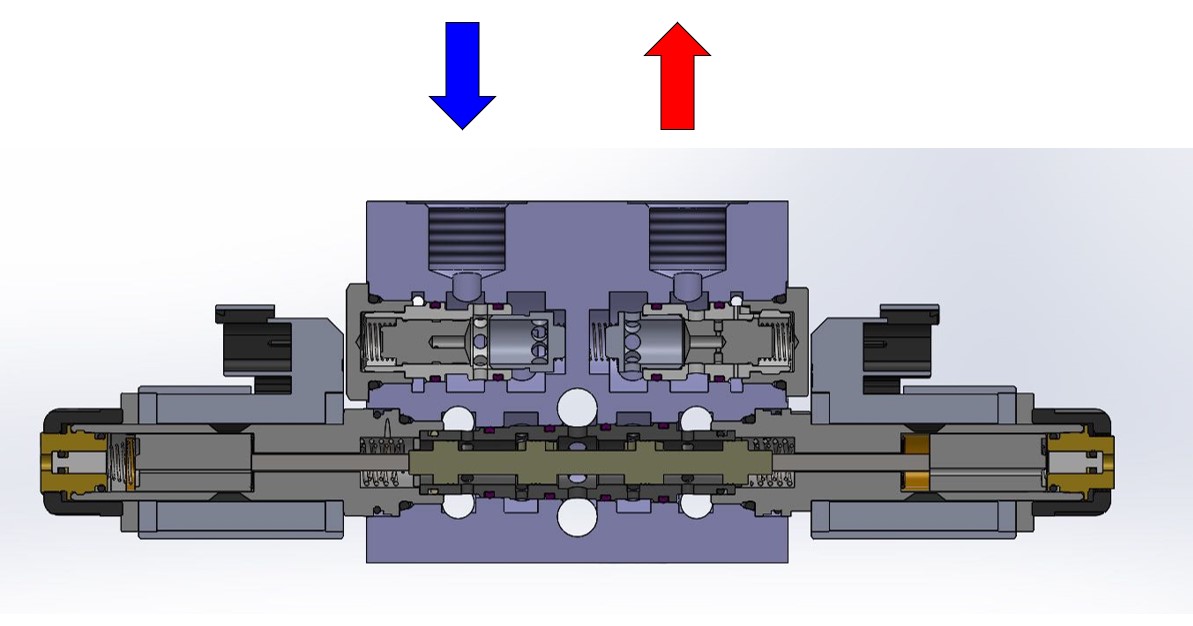

· Simple spool with higher reliability.
· Driving directly by electromagnetism, the control will be as you wish.
· Flexible layout in one single manifold let it possible to quickly customize in high volume.
· With the precise matching of the spool and the sleeve, the manifold can be manufactured with aluminum profile from the market, without the precision casting and precision machining, to meet the demand of the rapid change of the rapid changing market.
Parameters
· Manifold material
· Manifold material
Aluminum 7075
· Nominal flow rating
Inlet port P 80l/min
Working ports 70l/min
· Maximum pressure
Inlet port P 280bar
Working ports 280bar
Outlet port 50bar
Drain port 5bar
· Ports threading
P-T G1/2, G3/4
A-B G3/8, G1/2
L-M G1/4 <br>
· Compensator
Inlet compensator 16bar
· Notches dimension and flow rate
4, 8, 12, 16, 25, 40, 50, 60 ,70l/min
· On / off dump valve
Power 20.5W
Voltage and maximum current 12VDC @1200mA, 24VDC@600mA
· Proportional valve
Power 36W
Voltage and maximum current 12VDC @1800mA, 24VDC@900mA
PWM PWM100Hz

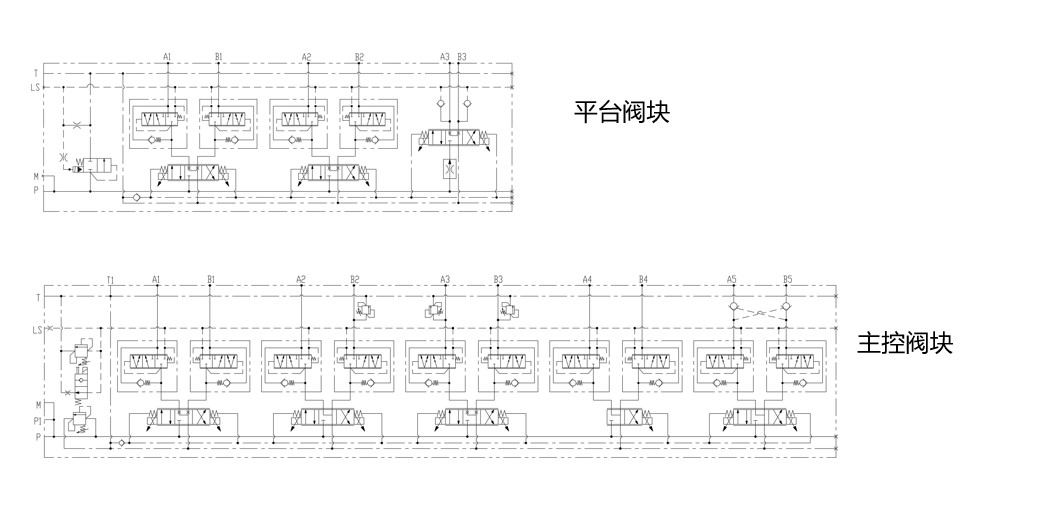

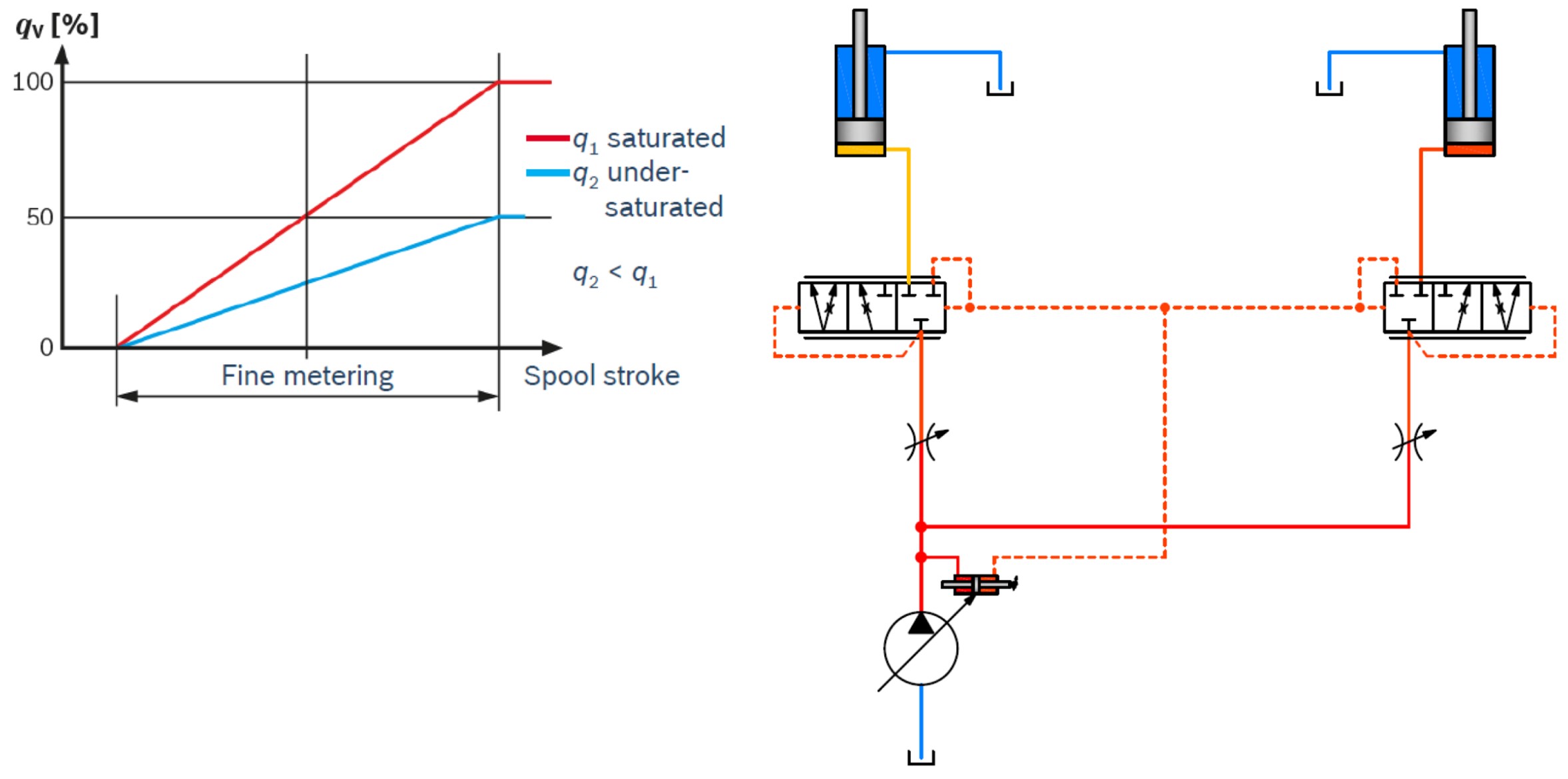

Basic Circuit and Metering Characteristic

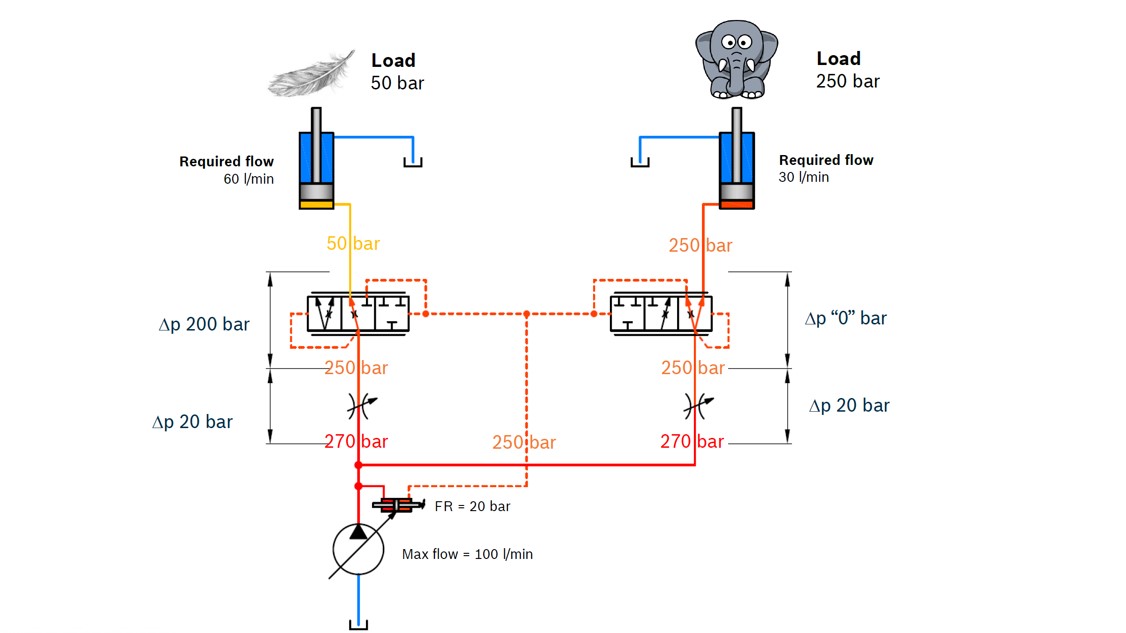

Saturated Condition

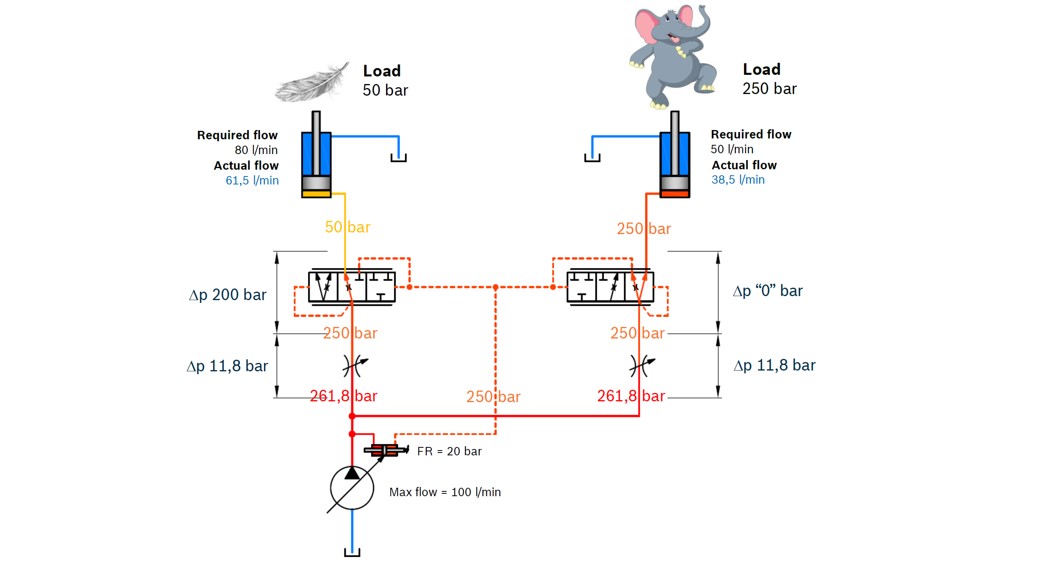

Under-Saturated Condition

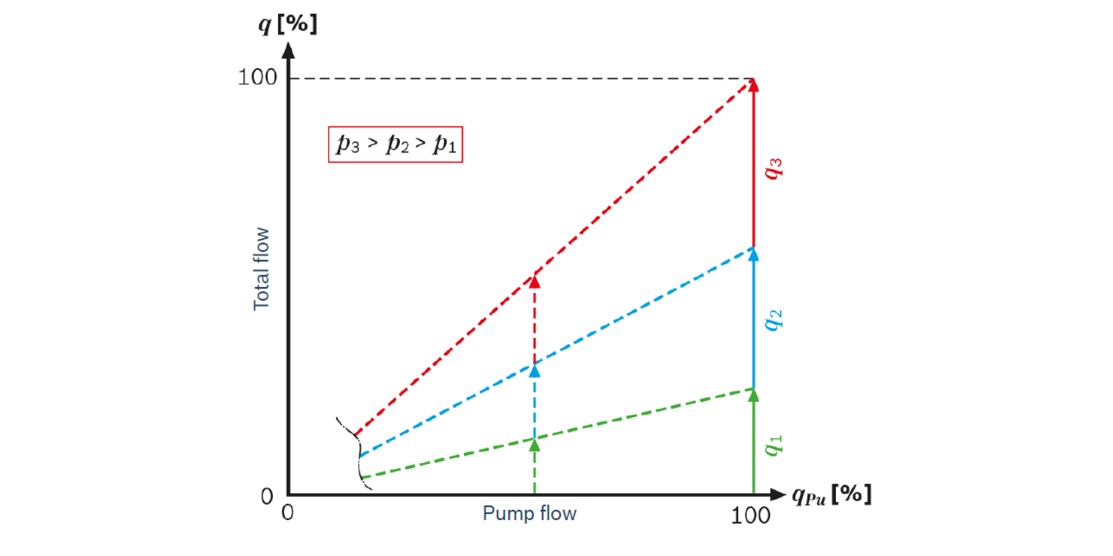

Consumer Flows with Reduced Pump Flow

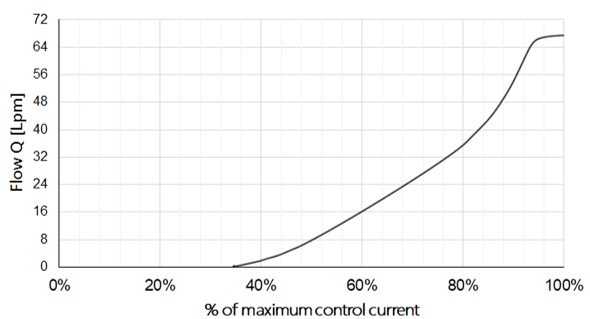

Characteristic Curve
Typical applications
· Monoblock compact design
· Proportional direct acting spool
· For fix and variable displacement pump
· Aluminum manifold
· Customized solution
· Proportional direct acting spool
· For fix and variable displacement pump
· Aluminum manifold
· Customized solution
· Manifold material
Aluminum 7075
· Nominal flow rating Inlet port P 80l/min Working ports 70l/min
· Maximum pressure Inlet port P 280bar Working ports 280bar Outlet port 50bar Drain port 5bar
· Ports threading P-T G1/2 G3/4 A-B G3/8 G1/2 L-M G1/4
· Compensator Inlet compensator 16bar
· Notches dimension and flow rate 4 8 12 16 25 40 50 60 70l/min
· On / off dump valve Power 20.5W Voltage and maximum current 12VDC @1200mA 24VDC@600mA
· Proportional valve Power 36W Voltage and maximum current 12VDC @1800mA 24VDC@900mA PWM PWM100Hz
